Selection of surge protective

Selecting surge protective device should refer to the following principles
Voltage imposed between the two terminals of the surge protector device should be less than or equal to the Max continuous operational
voltage Uc value of surge protective device
Voltage protection level of surge protective device should be less than the impact & pressure-resistant limit of the equipment protected

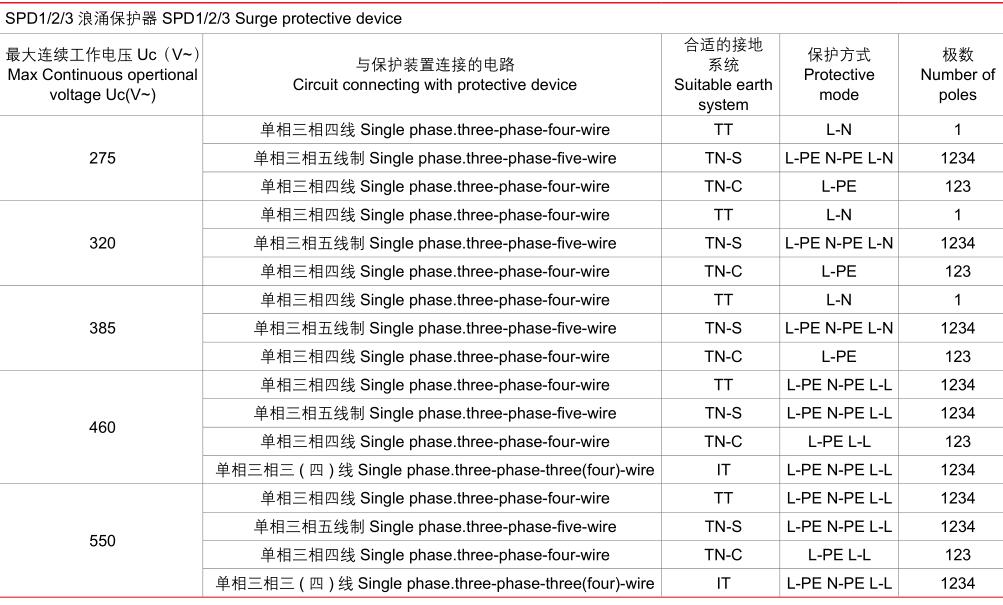

Select corresponding specifications according to different earth system and protecting mode

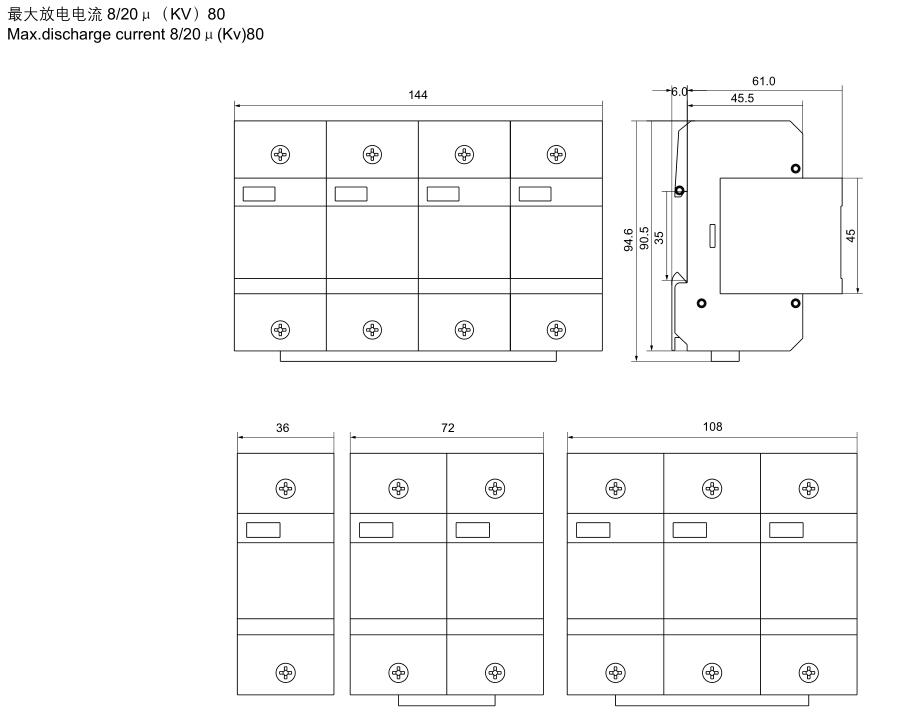

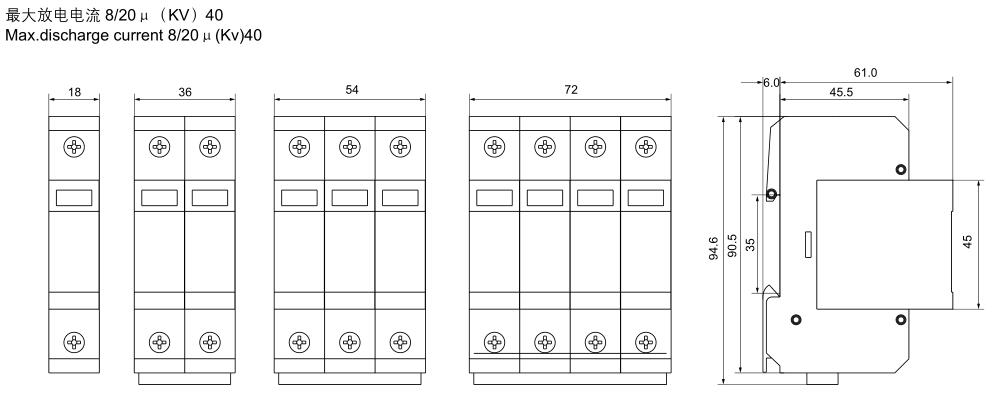

Dimensions
