Photovoltaic Fuse
- Fuse size: 10x38mm
- Class of Operation: gPV
- Standard: GB/T 13539.6 IEC 60269-6
- Breaking Capacity: 20kA
- Time Constant: 1-3ms
Application
This series of fuse is suitable for solar photovoltaic power generation system, rated voltage to 1500V, rated current to 630A, used in photovoltaic power generation equipment as a photovoltaic moudle string and photovoltaic array for over current protection, and photovoltaic panels, and batteries connected in series and parallel, to charge variable flow system for short circuit breaking protection, in photovoltaic station and inverter recifier system for short-circuit breaking protection, as well as photovoltaic power generation system, inrush current and short circuit fault voltage for quick break protection, rated breaking capacity to 10~50kA, products confirms to IEC 60629.1 and 60629.6.
Main model and installation
|
Type |
Model |
Fuse type of installation |
Size |
Rated current(A) |
Rated voltage |
|

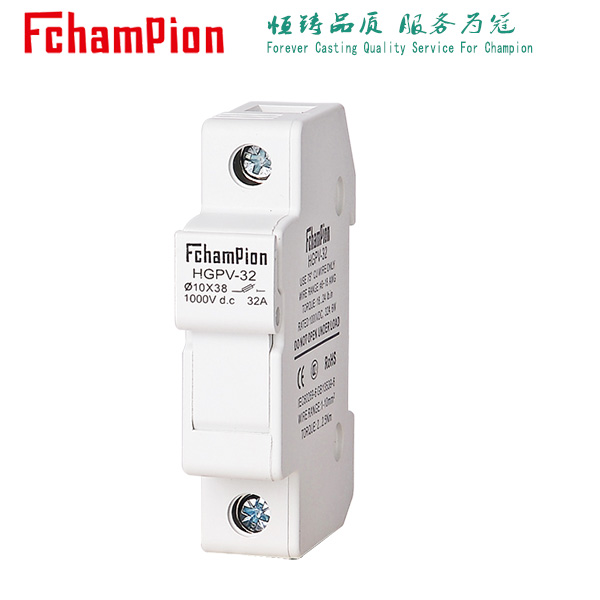

Cylindrical fuse link |
HG-10PV |
Cylindrical fuse link |
10x38mm |
1~32 |
1000Vdc |
|
HG-11PV |
10x65mm |
1~25 |
1500Vdc |
||
|

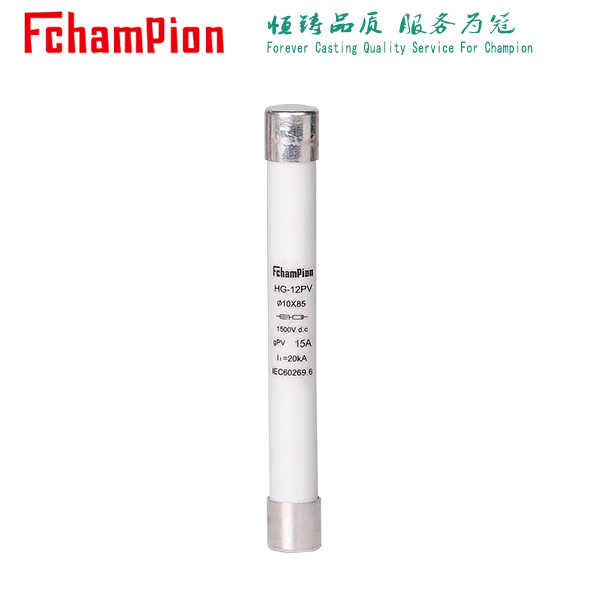

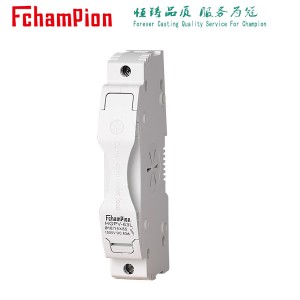

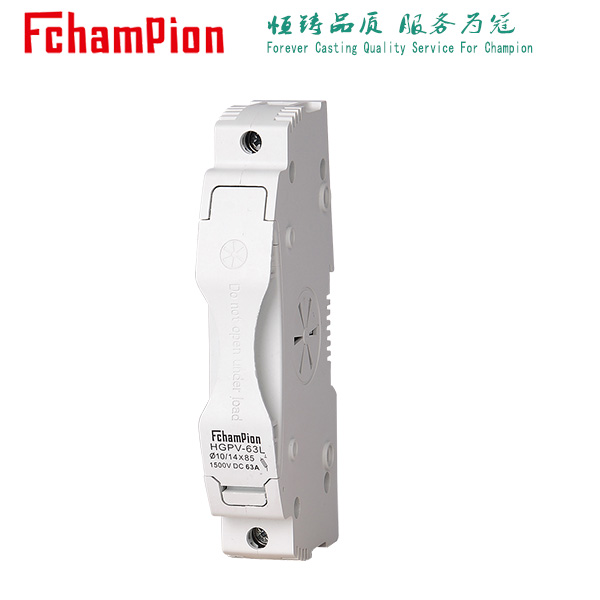

HG-12PV |
10x85mm |
2~32 |
1500Vdc |
||
|
HG-14PV |
14x51mm |
15~50 |
1000Vdc |
||
|
HG-14PVB |
14x51mm |
2~32 |
1500Vdc |
||
|
HG-16PV |
14x85mm |
2~50 |
1500Vdc |
||
|
HG-17PV |
22x58mm |
2~63 |
1500Vdc |
||
|

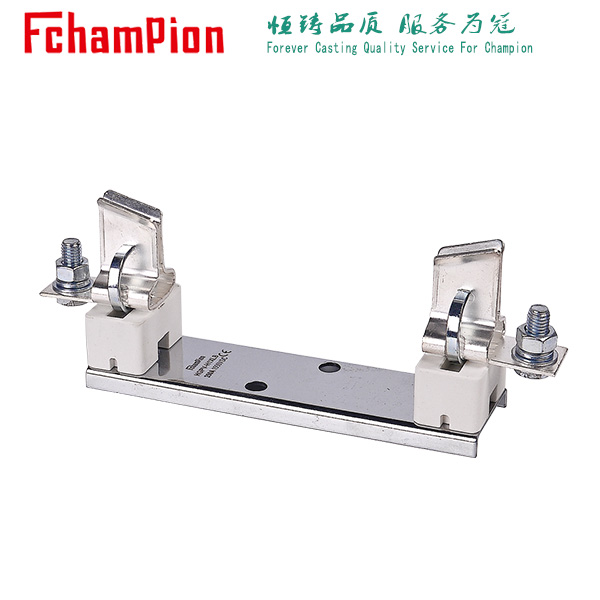

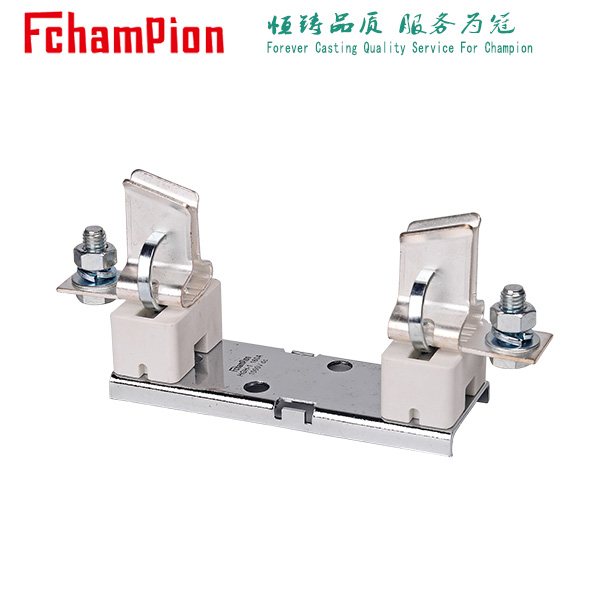

Square fuse link |
HGH-00 |
Square fuse link |
NH00 |
32~80 |
1000Vdc |
|
HGH-0 |
NH0 |
32~100 |
1000Vdc |
||
|

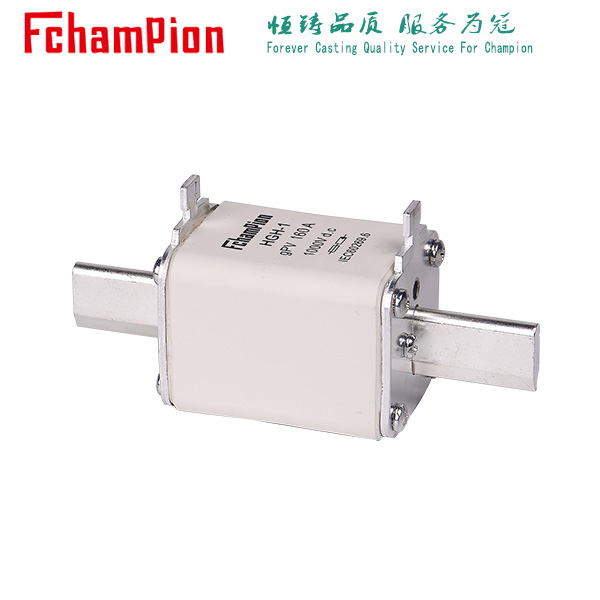

HGH-1 |
NH1 |
50~160 |
1000Vdc |
||
|
HGH-2 |
NH2 |
125~250 |
1000Vdc |
||
|
HGH-3 |
NH3 |
250~400 |
1000Vdc |
||
|
HGH-11 |
NH11 |
80~250 |
1000Vdc |
||
|
100~200 |
1500Vdc |
||||
|
HGH-12 |
NH12 |
125~400 |
1000Vdc |
||
|
80~250 |
1500Vdc |
||||
|
HGH-13 |
NH13 |
315~630 |
1000Vdc |
||
|
250~400 |
1500Vdc |

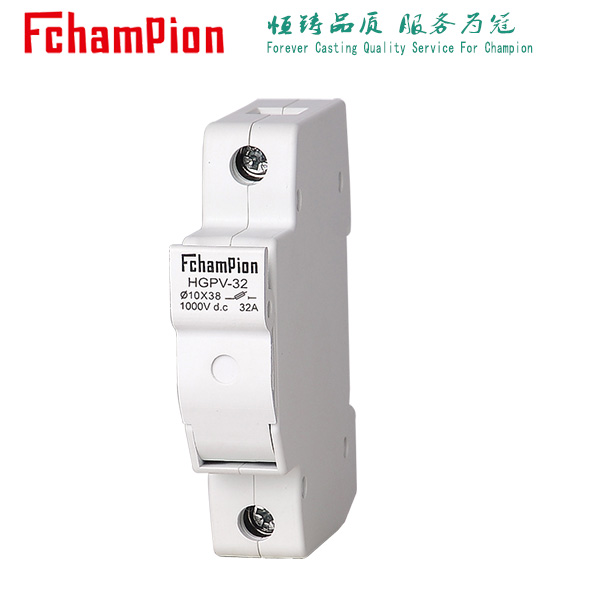

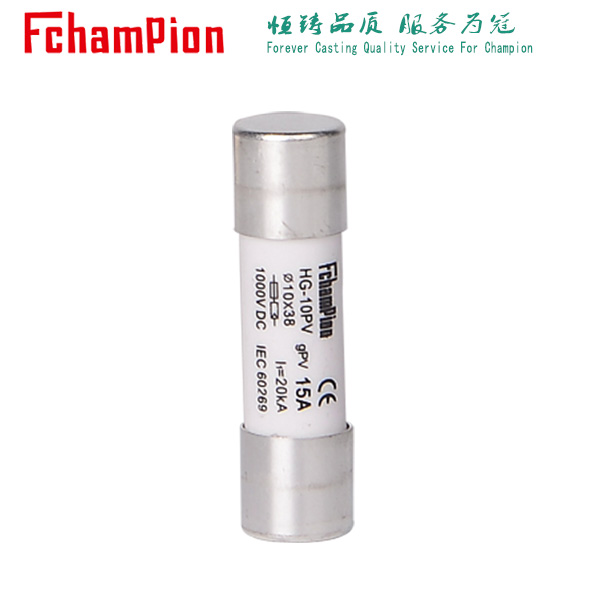

HG-10PV 1A-32A 1000V DC
HG-10PVD 1A-32A 1000V DC
HG-10PVS 1A-32A 1000V DC
- Fuse size: 10x38mm
- Class of Operation: gPV
- Standard: GB/T 13539.6 IEC 60269-6
- Breaking Capacity: 20kA
- Time Constant: 1-3ms

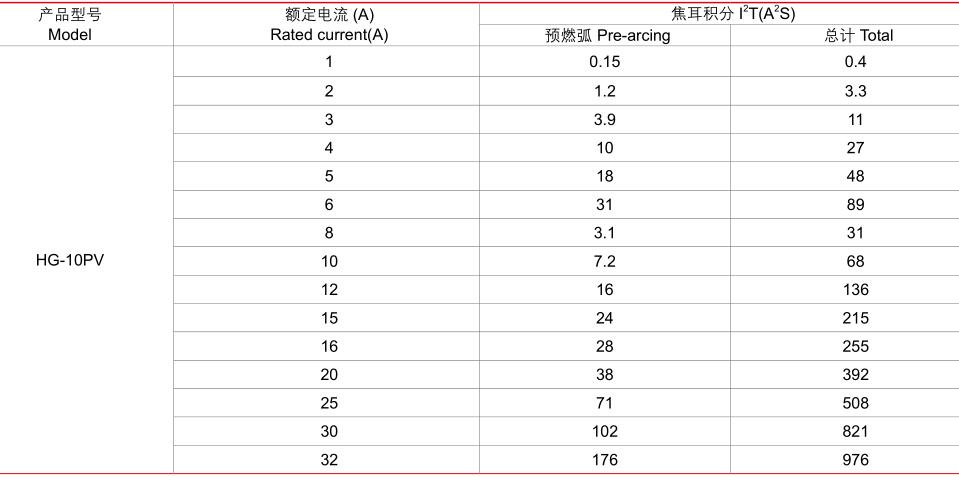

Specitications
