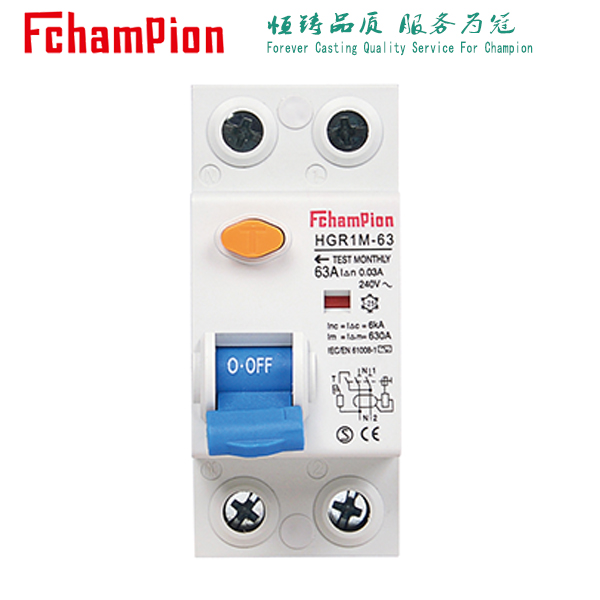

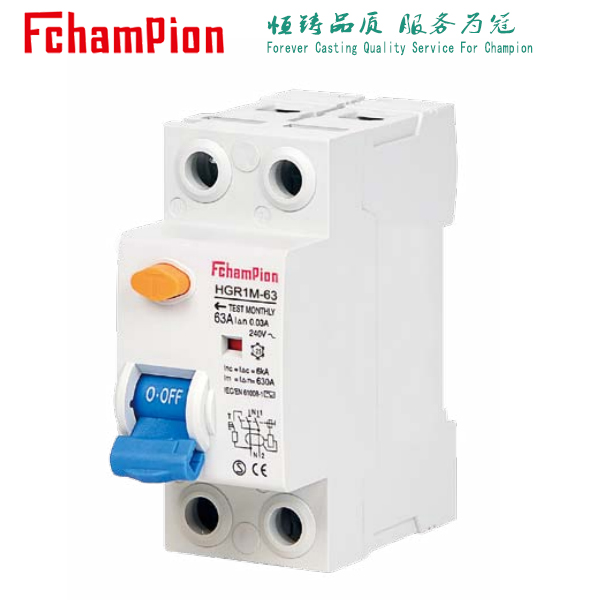

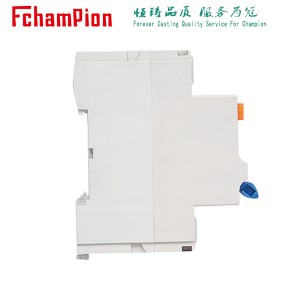

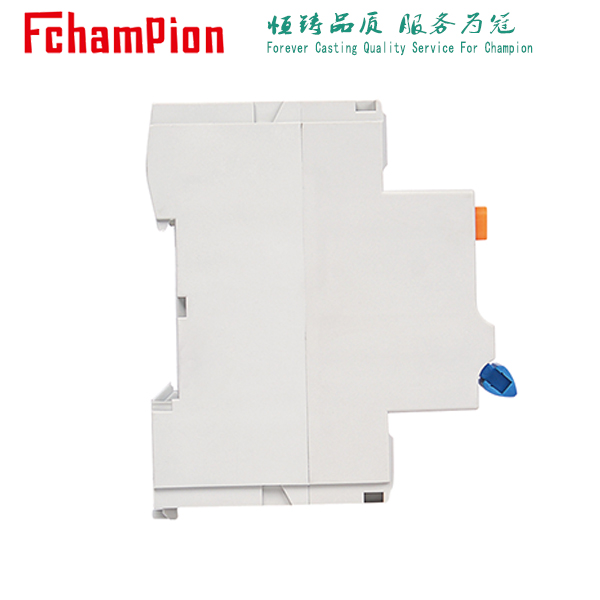

HGR1M-63 Residual Current Circuit Breaker
| Standard | IEC/EN60898-1 GB/T10963.1 | |
| Instantaneous trip type | Electronic /Electromagnetic | |
| The number of poles | 1P+N/3P+N | |
| Rated limit short circuit breaking capacity | Inc | 6kA |
| Rated working current | In | 16-63A (can be extended to 125A) |
| Rated working voltage | Ue | AC 230/400V |
| Rated operating frequency | 50/60Hz | |
| Rated impulse withstand voltage | Uimp | 4kV |
| Rated residual operating current | I △ n | 10/30/100/300mA |
| Mechanical/electrical life | 4000/4000 Times | |
| Type of residual current | A/AC | |
| Installation dimensions | See table |
