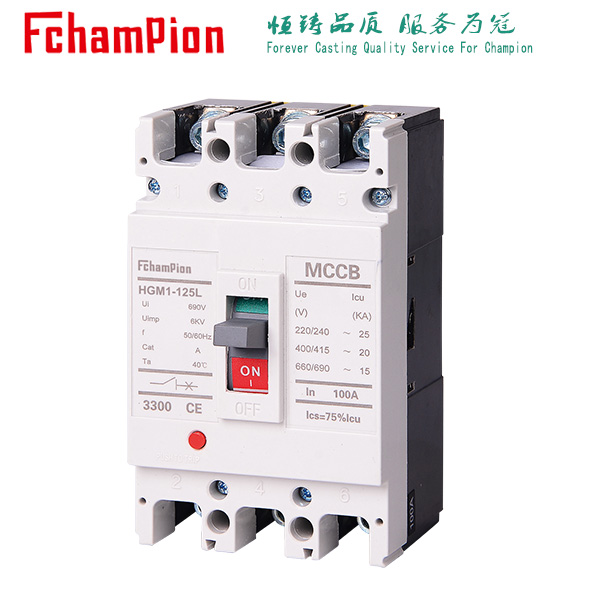

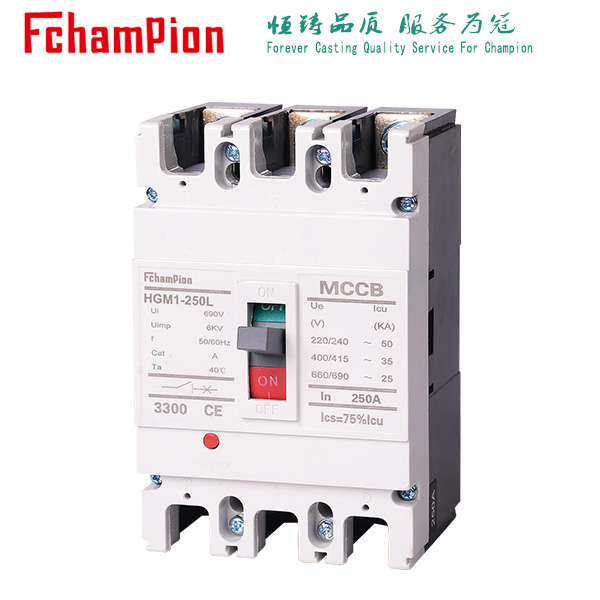

HGM1 Moulded Case Circuit Breaker

Short Description:

Per month we can sell 20000pcs around ,from different country clients has his own require ,we can supply OEM service and color box accordingly. Pls tell us your requirements,we will reply you soon .


Product Detail

Product Tags

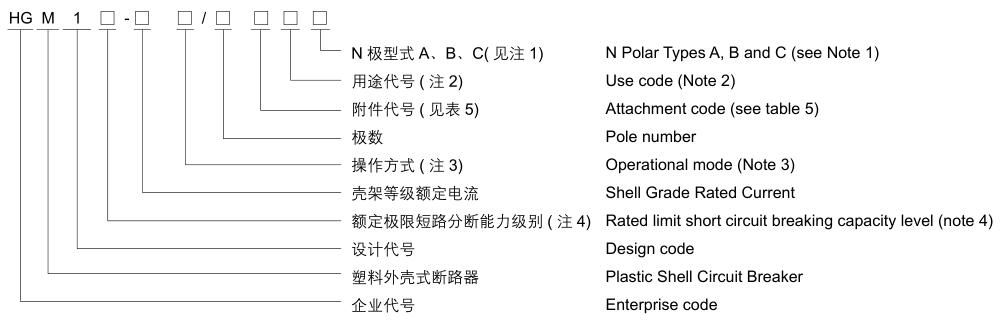

Model and Implication

001

Application

HGLC2 series AC contactor (hereinafter contactor) is suitable for using in the circuits up to the rated voltage 690V AC 50Hz or 60Hz,rated current up to 95A,for making,breaking,frequently starting &controlling the AC motor. This series contactor complies with GB14048.4,IEC60947-4-1.

1.There are three types of neutral-N poles in quadrupole products: Type A: N pole does not install overcurrent tripper, and N pole is always connected; Type B: N pole does not install overcurrent tripper, and N pole is combined with other three poles. Type C: N pole is equipped with overcurrent tripper, and N pole is combined with other three poles.

2. Distribution circuit breakers have no code number; protection motor type is represented by 2.

3. Handle direct operation without code name: D for electric operation and Z for rotating handle.

4. According to rated limit short circuit breaking capacity, it can be divided into L-type basic type, M-type standard type and H-type high breaking type. DC breaking capacity is equal to L-type of the same shell, and 4P product breaking capacity is equal to M-type of the same shell.

Usage & Maintenance

1.Any characteristic & accessory of MCCB is set by factory without any self-adjustment.

2.MCCB can work normally in close, open, tripping positions when in trip position, handle shall be pushed to break position, then can make it close.

3.The printing shall be complete with 18 months from the date of shipment in case that user follows all the concerning instructions , manufacturer is responsible in checking & repairing in case the products are damaged or abnormal in use

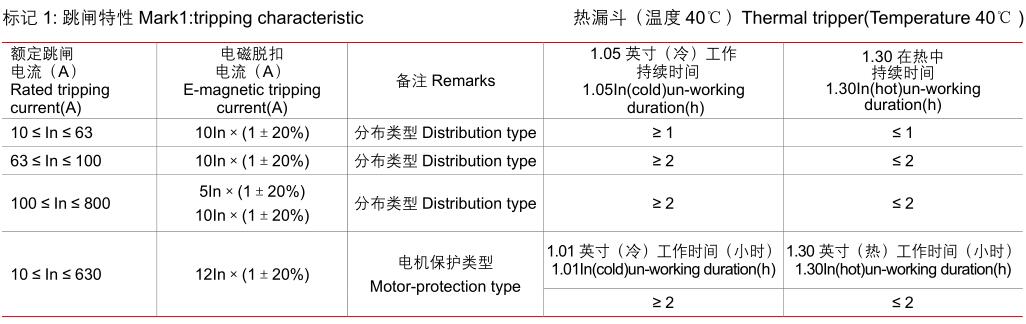

Tripping Factor

002

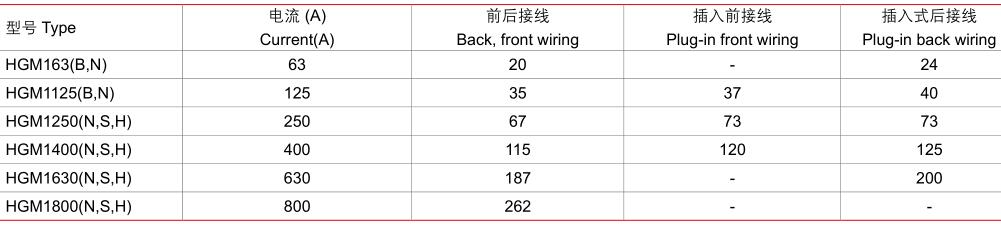

Power Loss

003

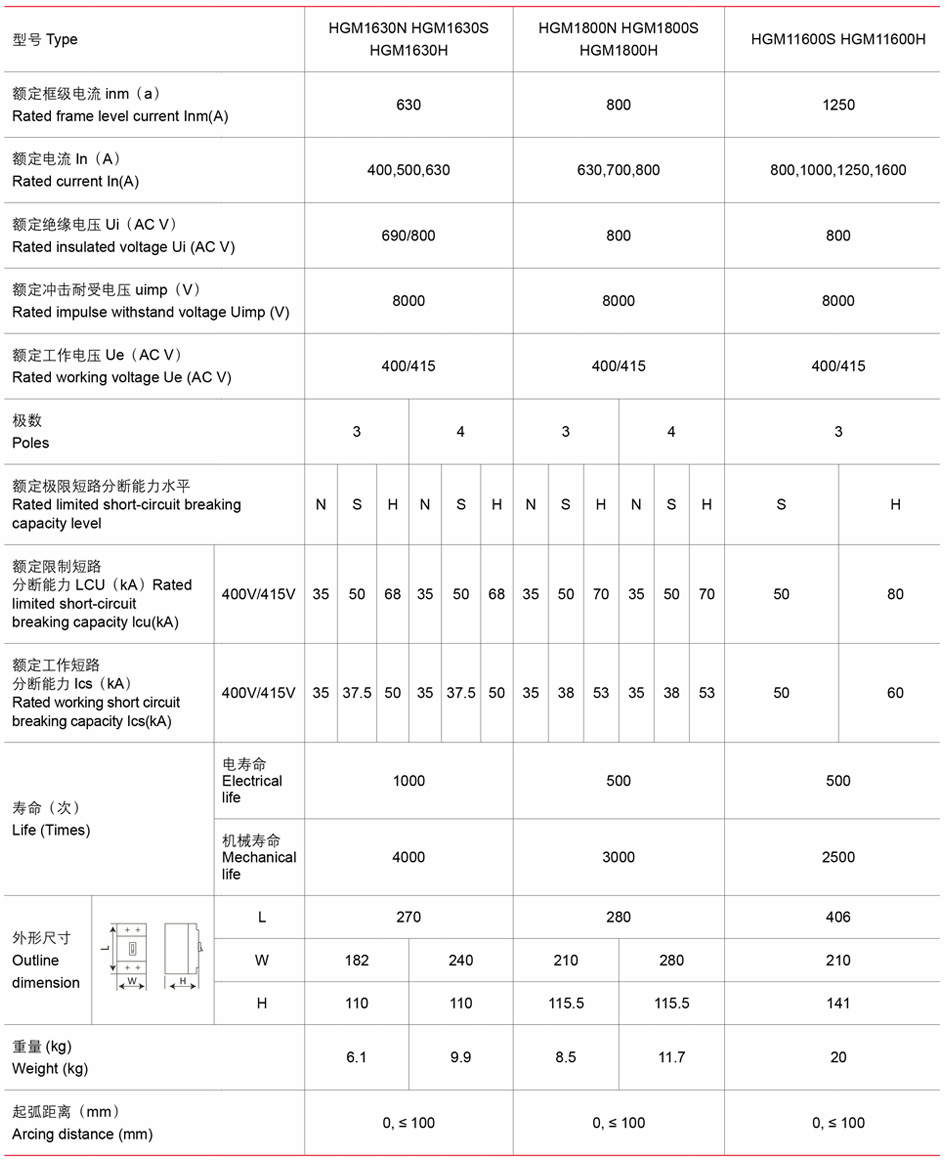

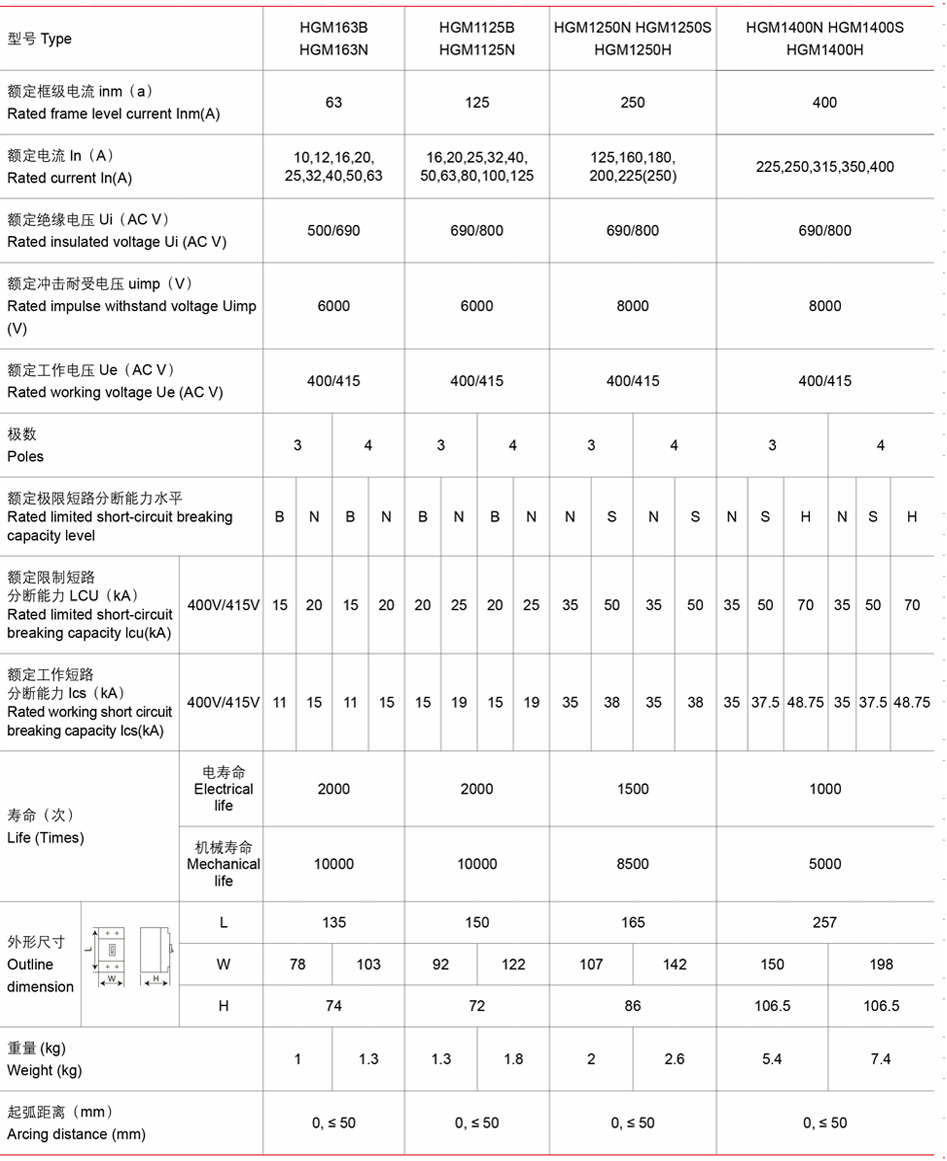

Main Technical Data of MCCB

005

006

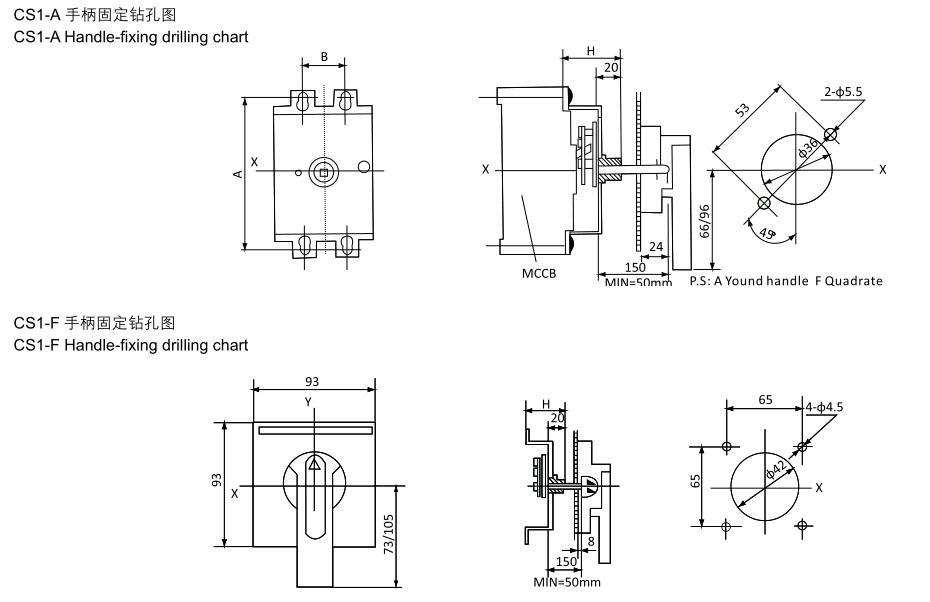

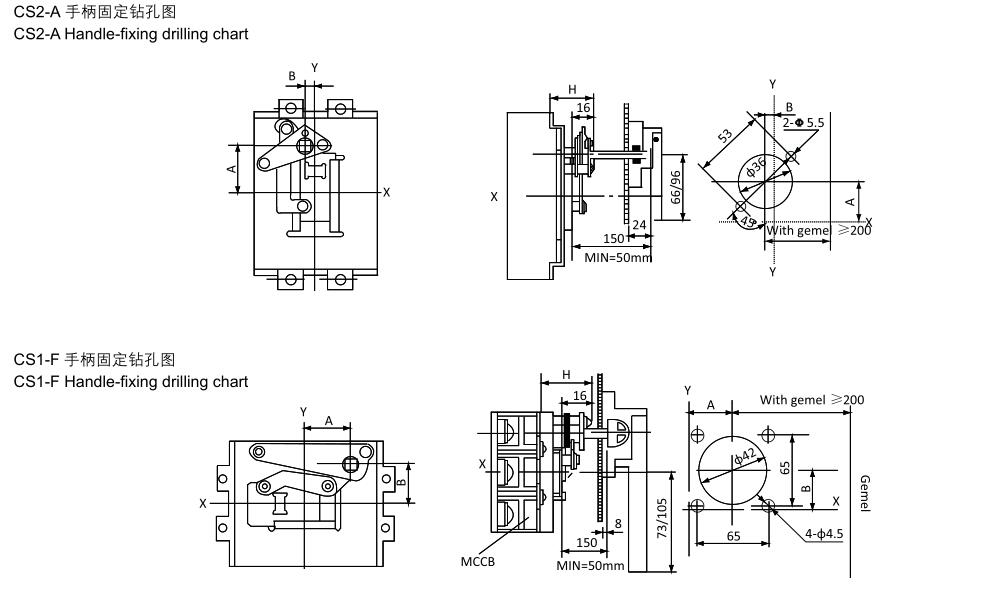

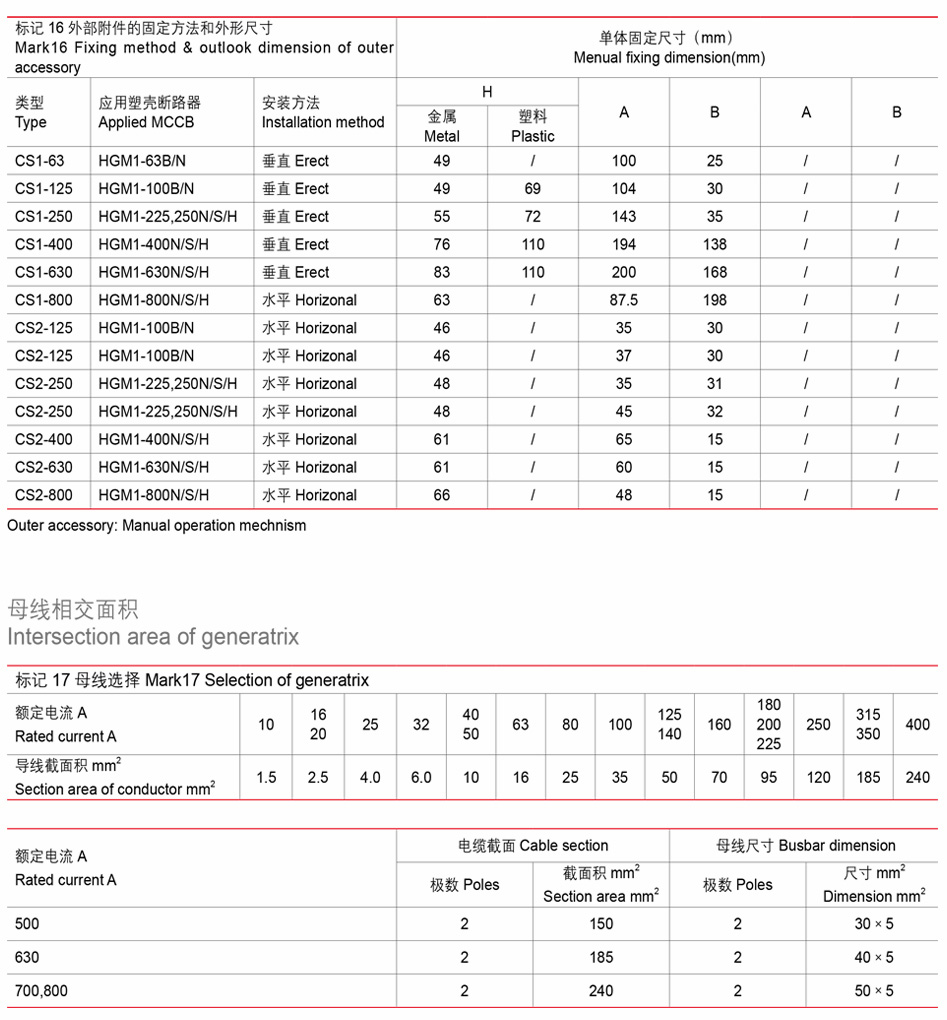

Fixing method & outlook dimension of outer accessory

007 008

009

Usage & Maintenance

Any characteristic & accessory of MCCB is set by factory without any self-adjustment.
MCCB can work normally in close, open, tripping positions when in trip position, handle shall be pushed to break position, then can make it close.
The printing shall be complete with 18 months from the date of shipment in case that user follows all the concerning instructions ,
manufacturer is responsible in checking & repairing in case the products are damaged or abnormal in use.
