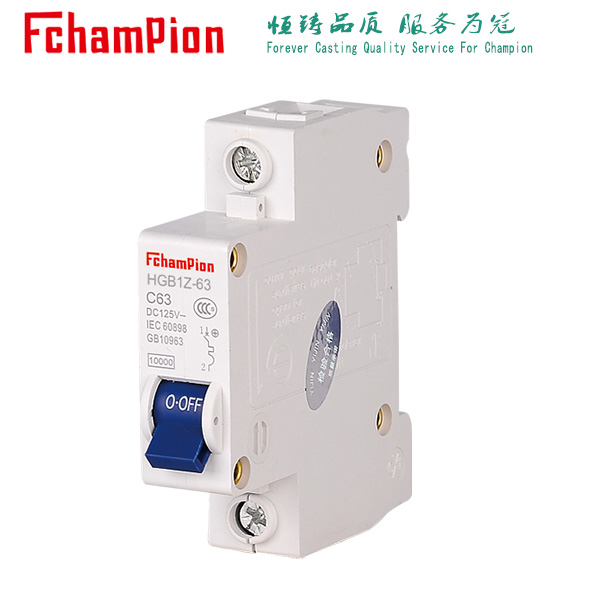

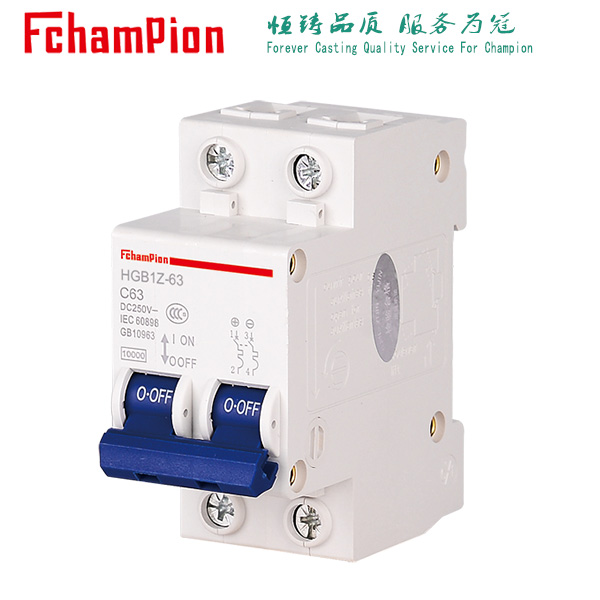

HGB1Z-63 Series DC Small Circuit Breakers

Short Description:

Per month we can sell 20000pcs around ,from different country clients has his own require ,we can supply OEM service and color box accordingly. Pls tell us your requirements,we will reply you soon .

Send email to us Download as PDF

Product Detail

Product Tags

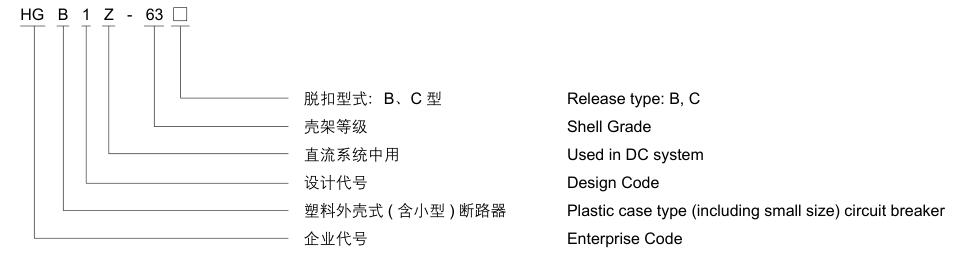

Model Meaning

Technical parameter

Shell Class Rated Current Imm(A)	Extremum	Width/Bit (18mm Multiple)	Rated Voltage (V)	Rated Current In(A)	Rated Current In(A)		Instantaneous Release Type
					Disconnecting Current Icu (A)	Time Constant T(Ms)
63	1	1	DC125V/220V	1/2/3/4/5/6/10/15/16/20/25/32/40/50/63A	10000/ 6000	10	B/C
	2	2	DC250V/440V
